RASA Frame + Steel Disc/Rim Fork

$1,050.00
sold out

$2100

Made to order frames coming soon!

Size:
Color:
Add To Cart

$2100

Made to order frames coming soon!

$2100

Made to order frames coming soon!

Introducing

The World’s Most Versatile Bike Frame



RASA was named after the term Tabula Rasa, which is the theory that the human mind starts with a blank slate. This bike can be anything you want it to be. It can be built into an all day road bike, gravel bike, tracklocross bike, light touring bike, commuter bike, dirt road bikepacking bike and so much more. The frame is compatible with 4 forks, 3 tire sizes, and can be used with either rim or disc brakes no mater what tire you chose. No matter the road you seek, the RASA was made for it.






Three Tire Sizes, One Frame

700x35, 650x48 and 26x2.3 tires are all compatible allowing you to change the personality of your bike by simply swapping wheels. All these tire sizes have relatively the same outer diameter, allowing the balanced and stable all road geometry to be maintained no mater the wheel size you chose.

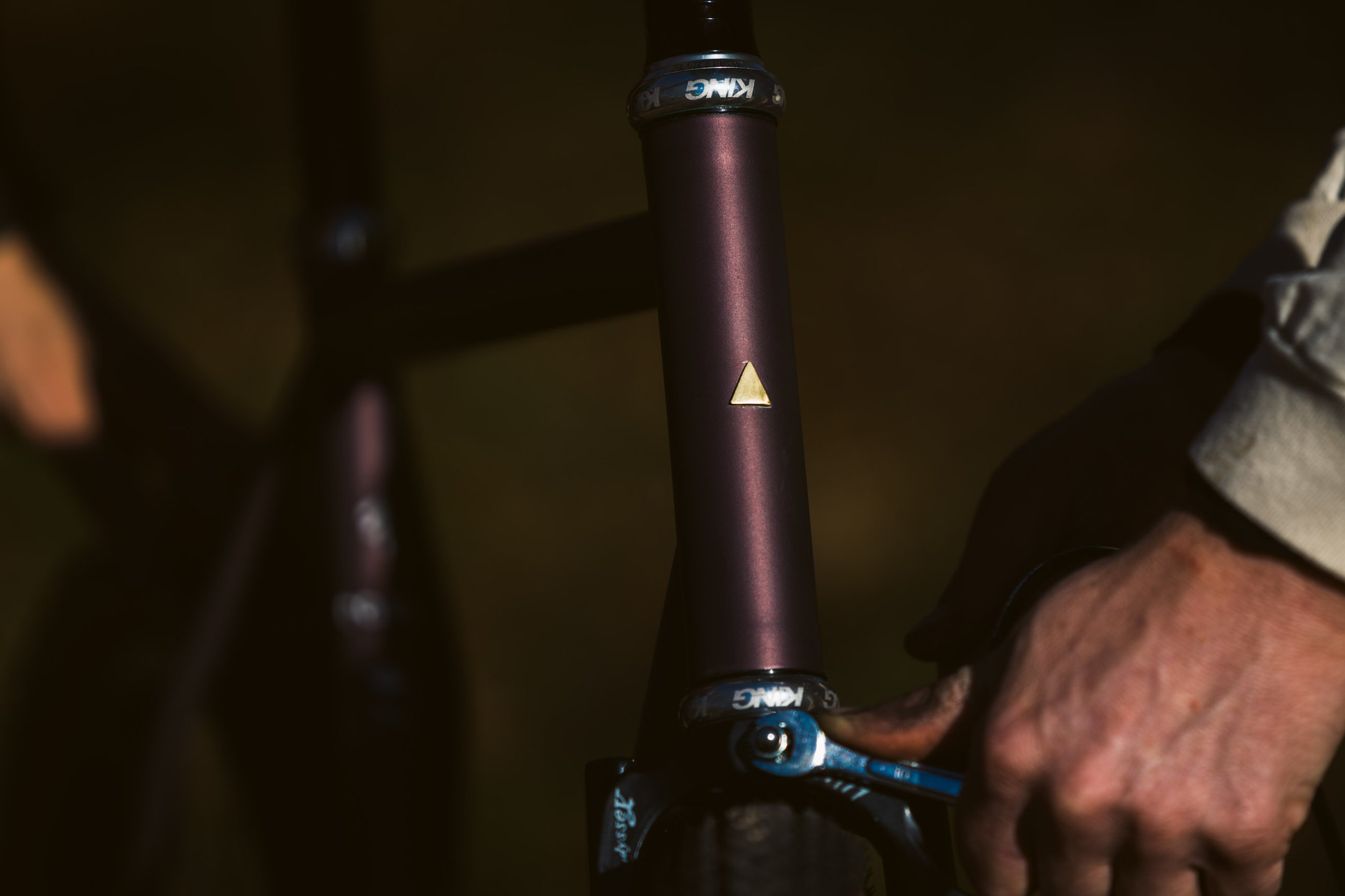

Custom 1 1/4” Headtube

We’ve resurrected the 1 1/4” headtube from the 90’s mountain bike era, and collaborated with White Industries to offer a premium headset to pair. Doing this allows for a slim, elegant, and lightweight headtube that maintains a clean aesthetic with our traditional steel fork, but still allows us to use a tapered carbon fork as well.

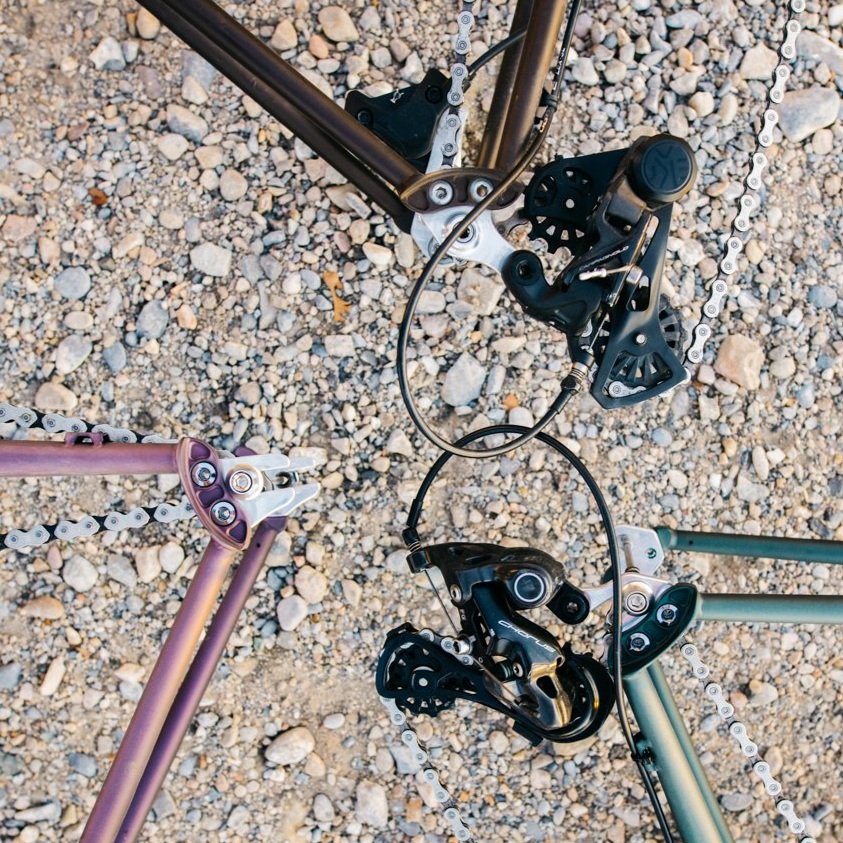

All New RASA Dropouts

All the customization and capabilities of the bike come from the amazing RASA dropouts. Designed in collaboration with Lichen Precision. We offer 12x142 flat mount for disc brake,130x10 Quick Release inserts for road rim brake and 135x10 Horizontal Track inserts. Allowing you to make the bike anything you want it to be!





TECH SPECS

  • Steel Frames Proudly Made in USA

  • Columbus Zona Tubing, Front & Rear Triangle

  • Custom 1 1/4” Headtube

  • Carbon Disc Fork Includes Custom White Industries (EC37/28.6 | EC37/33) Headset

  • Steel Fork Includes Adapters for Standard 1 1/8” (EC34/28.6 | EC34/30) Headsets

  • External Routing Under Downtube / Internal Under Toptube

  • Max Tire Clearance 700x35, 650x48, 26x2.3

  • Max Chainring: 1x - 44T / 2x - 50T/34T

  • 28.6mm band on front derailleur

  • 29.8/30.0mm Seatpost Collar

  • 68mm Threaded BB shell

  • 3 Sets of Bottle Bosses

  • 27.2mm Seatpost

  • Fork Options

    • Carbon Disc Brake - Allied All Road Fork / 12x100 Axle / 48mm Rake / 375mm A to C

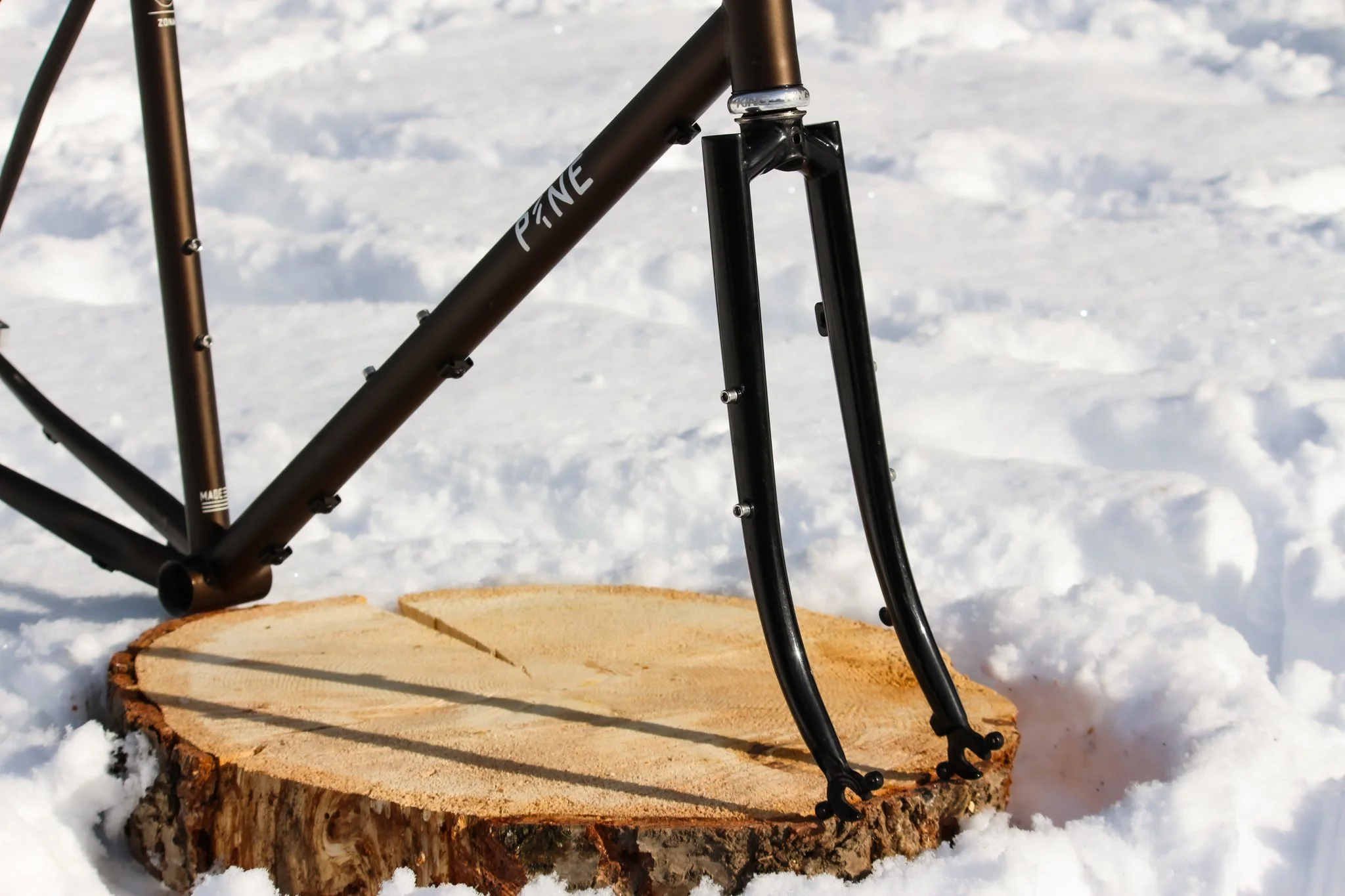

    • Steel Disc/Rim Brake - Pine Segmented Fork / QRx100 Axle / 50mm Rake / 375mm A to C

  • Other Compatible Forks Sold Separately

    • Carbon Rim Brake - Whisky No.7 RD+ Mid Reach Fork / QRx100 Axle / 45mm Rake / 375mm A to C

    • Carbon/Alu Rim Brake - Wound Up Commuter Fork / QRx100 Axle / 45mm Rake / 376mm A to C

  • Pine x Lichen RASA Dropouts with optional inserts:

    • 12x142 Flat Mount / Disc Brake (rack/fender mounts optional)

    • 130x10 Quick Release / Rim Brake (rack/fender mounts optional)

    • 135x10 Horizontal Track / Rim/No Brake (rack/fender mounts optional)

  • Complete List of ALL Compatible Tires, Brakes, Rims

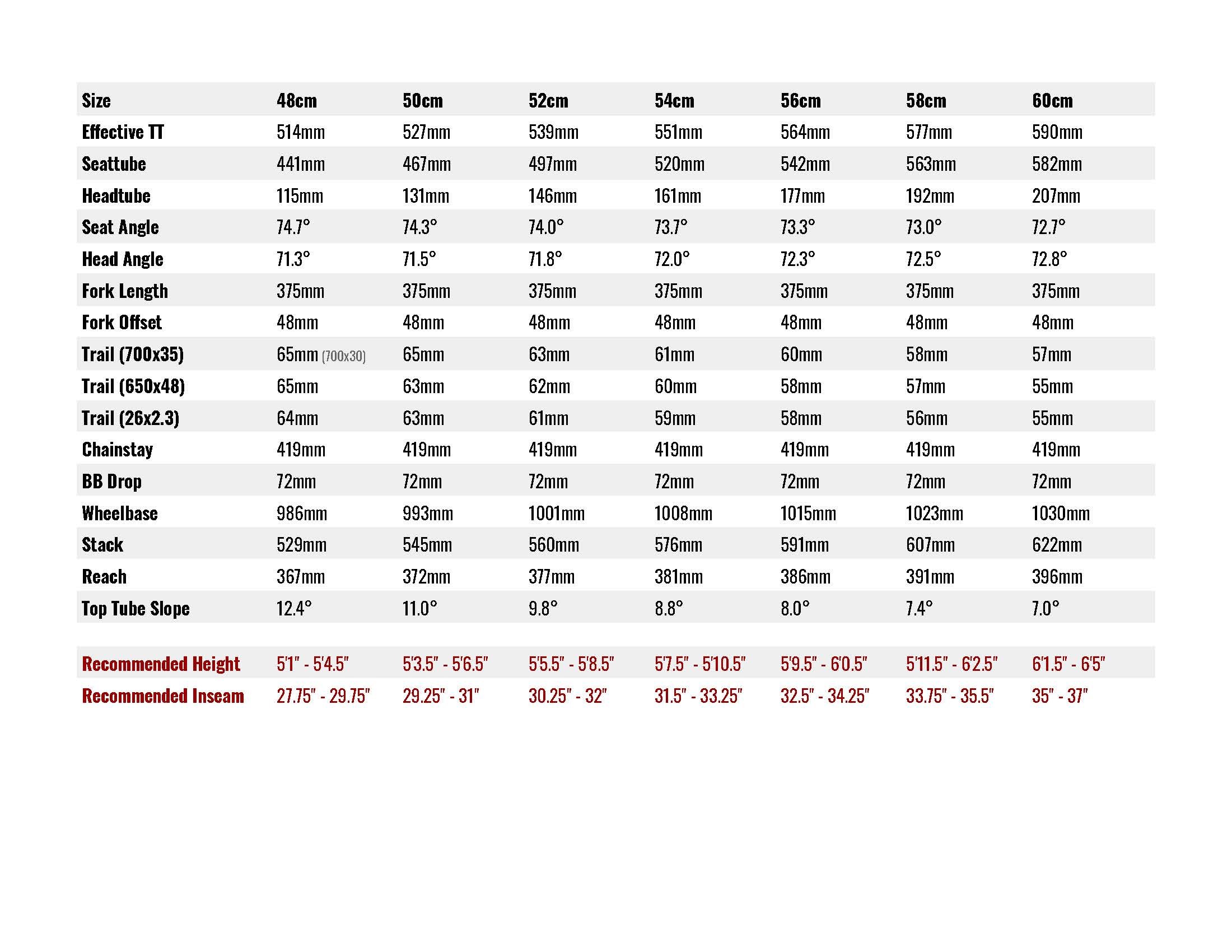

GEOMETRY


HEAR IT STRAIGHT FROM THE FOUNDER.

A full breakdown of the bike from Enve’s Builder Show.



We Love All Wheel Sizes, Brake Types, Human Sizes, and Human Types.

This bike is meant to offer something for everyone and anyone!
